Tag: performance

MySQL is needlessly slow at accepting new connections. People usually work around that by having various sorts of connection pools, but there’s always a scale at which connection pools are not feasible. Sometimes connection avalanches come unexpected, and even if MySQL would have no trouble dealing with queries, it will have problems letting clients in. Something has to be done about it.

Lots of these problems have been low hanging fruits for years – it ‘was not detected’ by benchmarks because everyone who benchmarks MySQL would know that persistent connections are much faster and therefore wouldn’t look at connection speeds anymore.

Usually people attribute most of slowness to the LOCK_thread_count mutex – they are only partially right. This mutex does not just handle the counter of active running connections, but pretty much every operation that deals with increase or decrease of threads (thread cache, active thread lists, etc) has to hold it for a while.

Also, it is common wisdom to use thread cache, but what people quite often miss is that thread cache is something that was created back when OS threads were extremely expensive to create, and all it does is caching pthreads. It does not do any of MySQL specific thread caching magic – everything gets completely reinitialized for each incoming structure.

I decided to attack this problem based on very simple hypothesis – whatever ‘accept thread’ is doing, is bottleneck for whole process. It is very simple to analyze everything from this perspective (and I had some success looking at replication threads from this perspective).

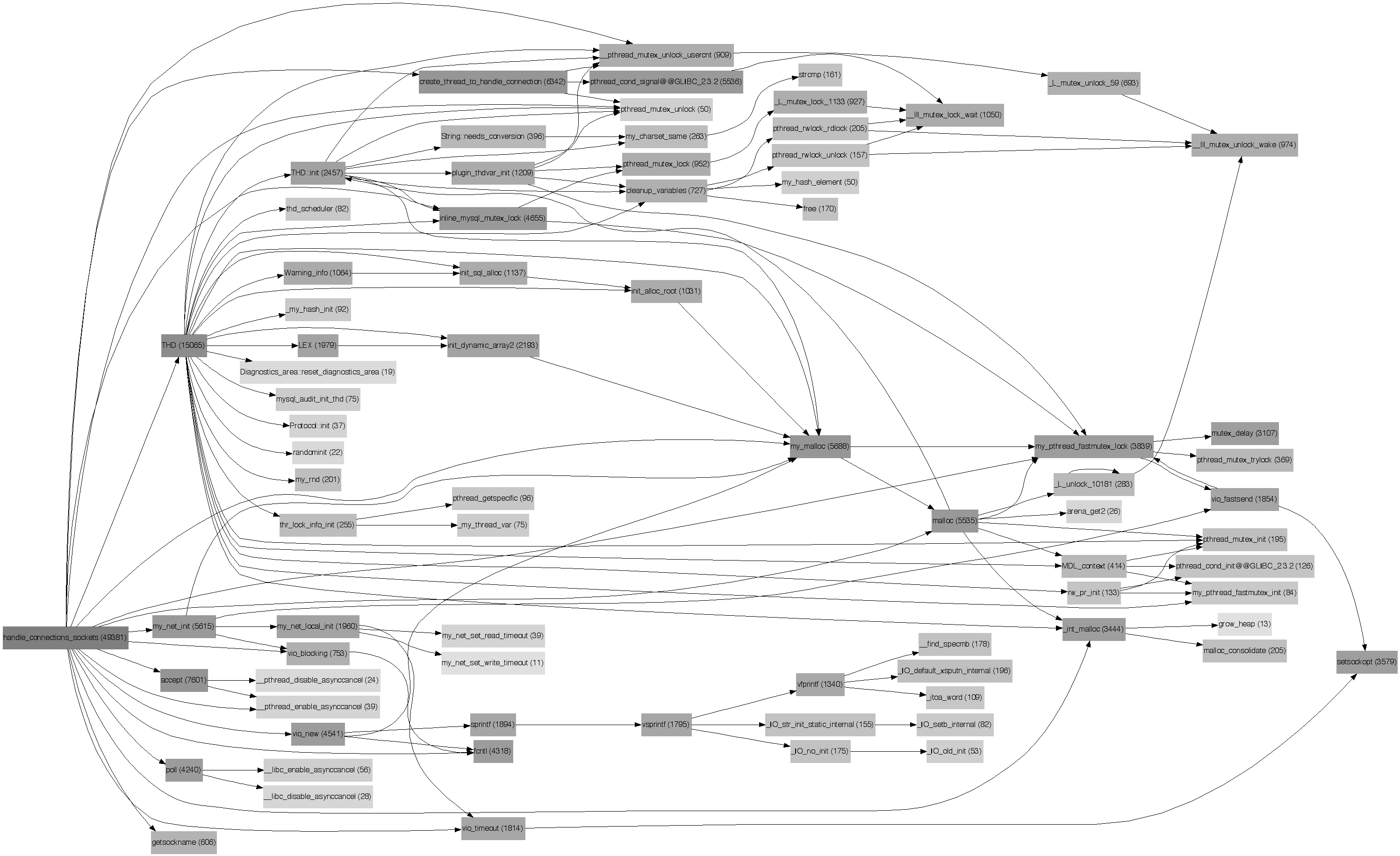

All we need is gdb and two loops – gdb attaches to accept thread, one loop does ‘breakpoint; continue’, another sends signals at a certain sampling rate (I picked 10Hz in order to avoid profiling bias). I posted those scripts on PMP page. After a lunch break I had 50k stacks (long lunch ;-) that I fed into graphviz for full data visualisation and could look at individually:

A picture is worth thousand words (well, is easier than looking at thousands of lines in stack aggregations), and I immediately noticed few things worth looking at:

• Initializing THD (MySQL thread) structure is CPU-heavy task that resides in choke-point thread
• There is way too much time spent in syscalls, whatever they do
• Too much memory allocation done by the master thread
• There’s mutex contention on thread cache waking up worker threads
• There’s needless mutex contention in few other places

I didn’t want to look at mutex contention issues first so I ended up with something as simple as looking at syscall costs.

• 15% was going into actual accept()
• 8.5% was going into poll()
• 8% went into fcntl()
• 7% went into setsockopt()
• 1.2% went into getsockname()

An strace on mysqld gives a picture that explains quite a bit:

poll([{fd=12, ...}, {fd=13, ...}], 2, -1) = 1
fcntl(12, F_GETFL) = 0x2 (flags O_RDWR)
fcntl(12, F_SETFL, O_RDWR|O_NONBLOCK) = 0
accept(12, {... sin_port=htons(59183), ...) = 32
fcntl(12, F_SETFL, O_RDWR)
getsockname(32, {... sin_port=htons(3306), ...) = 0
fcntl(32, F_SETFL, O_RDONLY) fcntl(32, F_GETFL) = 0x2 (flags O_RDWR)
setsockopt(32, SOL_SOCKET, SO_RCVTIMEO, ...)
setsockopt(32, SOL_SOCKET, SO_SNDTIMEO, ...)
fcntl(32, F_SETFL, O_RDWR|O_NONBLOCK)
setsockopt(32, SOL_IP, IP_TOS, [8], 4)
setsockopt(32, SOL_TCP, TCP_NODELAY, [1], 4)


I’ll skip walking through the code, but essentially what it does here is (12 is accept socket, 32 is connection socket):

• poll() checks whether there are pending connections. If server is busy, trying to accept first, poll on failure is a better approach. There are side effects with that idea though – other sockets may starve a bit, but it is solvable by injecting occasional poll.
• What happens next is a bit sad. Instead of storing per-socket flags (nobody is touching that for now anyway), it gets the socket flags, figures out it is a blocking socket, sets it to nonblocking mode, accepts the connection, sets it back to blocking mode. Just setting to nonblocking at the start and using it forever that way is much cheaper and constipates way less.
• accept() itself can be scaled only by having parallel accept() threads. Maybe most of this post would be not necessary if there were multiple accept threads, but I’m not eager to go into that kind of refactoring for now.
• getsockname() is used just to verify if socket is correct (probably catching EINVAL later seems to be too complicated), it is a very pessimistic code path for a case that nearly never happens (it probably was added for some random Unix back from nineties)
• Next fcntl “get flags” call is quite unnecessary – this is a fresh socket and one shouldn’t expect anything special within it. Later non-blocking mode is set, so that overrides whatever was obtained here.
• Three out of four setsockopt()s are necessary evil (one turns of Nagle’s algorithm, two other set socket timeouts), so they have to be done before network I/O is done on the socket. Fourth setsockopt() is usually completely useless – not every network observes IP_TOS header, and one has to talk to network administrator first about decent values. I’d say it can be optional parameter (yay, more tuning options).

Pretty much every connection socket operation can be done later, in a worker thread, without consuming expensive accept thread time, and pretty much every syscall except accept() can be removed from a busy accept thread(), which is what I did in my testing build.

Once I got rid of syscalls I started looking at other low hanging fruits. The most obvious one was sprintf() called inside vio_new(). Though it accounted only for 4% of thread time, the uselessness of it was depressing. Here it is:

sprintf(vio->desc,
   (vio->type == VIO_TYPE_SOCKET ? "socket (%d)" : "TCP/IP (%d)"),
   vio->sd);

It formats a string that is not used at all by production builds (only few DBUG messages are calling vio_description()). Though I removed this code in non-debug build, as I was moving over network initialization to worker threads, whole my_net_init() and vio() ended up outside of accept thread anyway ;-)

The overall thread cache design is centered around LOCK_thread_count – lock is held while signaling threads, and threads that wake up need the lock too – so there’s lots of overhead involved in the coordination – 13% of time is spent just to pass the task to a worker thread.

Allowing multiple threads to wake up and multiple entries to be placed into thread cache before it is all drained (more of an InnoDB concurrency-queue with FLIFO approach) could be somewhat better – so would be worker threads accepting connections directly (I already said that, I guess). There’s simply too much time wasted waking up and sending threads to sleep, and quite some of that time is on a choke point.

THD initializations are somewhat simpler, as they don’t include SMP madness.

There’re some low hanging fruits of course there as well. For example THD initializer calls sql_rnd_with_mutex(), which locks thread count mutex. Simplest fix could be using another mutex, though lockless random function or on-demand variable initialization would help too.

Some initializers there are quite expensive too – e.g. Warning_info class could initialize dynamic storage only when actually used, and not at THD initialization chokepoint. THD::init can be moved to a worker thread, and lots of THD initialization could be moved over to it.

Quite a lot of time (12%) is spent on malloc() – and lots of that is for allocating lots of various fixed-size structures – slab allocator (or just more efficient malloc implementation) could cut on CPU time there. Of course, more drastic alternative is not dealing with THD at all during accept phase – one can pass stub structure to build upon later, or (oh, am I writing this again) moving accept() part to individual workers.

So far I tested just few optimizations – moved over vio/net initialization to worker threads, reduced number of syscalls, added a new mutex for rand initialization, and that alone got me additional 50% increase in connection accepts. Think how much more one could get from fixing this problem properly ;-)

TL;DR: MySQL sucks at accepting new connections, but there’re lots of low hanging fruit there. Ask your MySQL provider for a fix.

MySQL bug entries:

• rand(): #62282
• fcntl on accept(): #62283
• network init costs: #62284
• vio sprintf(): #62285
• poll() vs accept(): #62286
• thread cache performance: #62287
• THD initialization: #62288
